Create Physical Standby Database in Data Gaurd Using RMAN Backup on Oracle 12C

 Primary Database - Dhee

Standby Database - Dheedr



STEP 1;

Check the Primary DB is in archive log mode or not.If it is not then enable it

Sql>starup mount

Sql>alter database archivelog

Sql>archive log list



STEP 2:

Enable force logging in the Primary Database.

Sql>alter database force logging;

  Check it by

  Select force_logging from v$database;



STEP 3 :

 Verify database initialization parameters db_name and db_unique_name on primary

 Show parameter db_name

 Show parameter db_unique_name



STEP 4:

 Set the Log_archive_config for datagaurd configuration.

 Sql>alter system set log_archive_config=’DG_config=(dhee,dheedr)’;

 Then

Show parameter log_archive_config



STEP 5:

SQL> ALTER SYSTEM SET LOG_ARCHIVE_DEST_2='SERVICE=dheedr NOAFFIRM ASYNC VALID_FOR=(ONLINE_LOGFILES,PRIMARY_ROLE) DB_UNIQUE_NAME=dheedr';

 Show parameter log_archive_dest_2

 Alter system set log_archive_dest_2=enable;

 Show parameter log_archive_dest_state_2.



STEP 6:

 alter system set log_archive_format='%t_%s_%r.arc' scope=spfile

 Show parameter log_archive_format.



STEP 7:

 Set log_Archive_max_processes=30

 Sql>alter system set log_archive_max_processes=30;

 Show parameter log_archive_max_processes



STEP 8:

 Set remote_login_passwordfile to exclusive

 Sql>alter system set remote_login_passwordfile=exclusive;

 Show parameter remote_login_passwordfile



STEP 9:

 Set fal_server and fal_client for the primary database.

 Sql>alter system set fal_server=dheedr

 Sql>alter system set fal_client=dhee



STEP 10:

 Set standby_file_management to auto

 Sql>alter system set standby_file_management = auto;

 Show parameter standby_file_management



STEP 11:

 Configure the listener and tns entries in both the servers

 Listener.ora:

 SID_LIST_LISTENER =

 (SID_LIST =

 (SID_DESC =

 (GLOBAL_DBNAME = dhee)

 (ORACLE_HOME = /u01/app/oracle/product/12.2.0.1/dbhome_1)

 (SID_NAME = dhee)

 ) )

 LISTENER =

 (DESCRIPTION =

 (ADDRESS = (PROTOCOL = TCP)(HOST = dheedr)(PORT = 1521))

 )

 ADR_BASE_LISTENER = /u01/app/oracle



STEP 12:

 Tnsnames.ora:

 dhee =

 (DESCRIPTION =

 (ADDRESS_LIST =

 (ADDRESS = (PROTOCOL = TCP)(HOST = dhee)(PORT = 1521))

 )

 (CONNECT_DATA =

 (SERVICE_NAME = dhee)

 (GLOBAL_NAME = dhee)

 (UR=A)

 ) )

 dheedr =

 (DESCRIPTION =

 (ADDRESS_LIST =

 (ADDRESS = (PROTOCOL = TCP)(HOST =dheedr)(PORT = 1521))

 )

 (CONNECT_DATA =

 (SERVICE_NAME = dhee)

 (GLOBAL_NAME = dhee)

 (UR=A)

 ) )



STEP 13:

 Check the tnsping utility on Primary and Standby.

 Tnsping dhee

 Tnsping dheedr



STEP 14:

 Backup the primary database via RMAN utility.

 RMAN>backup database plus archivelog;



STEP 15:

 Create the standby control file on the primary database.

 RMAN>alter database create standby controlfil  as ‘$ORACLE_HOME/dbs’

 Create the passwordfile on the primary database.

 Orapwd file=’$ORACLE_HOME/dbs/orapwdhee Password=siva@1998

 Entries=10.

 Create pfile from spfile.

 Create pfile=’$ORACLE_HOME/dbs/initdhee.ora’ from spfile



 STEP 16:

 Move the files like standby controlfile,passwordfile & backup pieces to the standby database through scp connection.



STEP 17:

 Connect the database using the pfile by changing some parameters:

 *.db_unique_name='dheedr'

 *.fal_server='dhee'

 *.log_archive_dest_2='SERVICE=dhee ASYNC VALID_FOR=(ONLINE_LOGFILES,PRIMARY_ROLE) DB_UNIQUE_NAME=dhee'



STEP 18:

 Take the database to nomount stage.

 Sql>startup nomount pfile=’$ORACLE_HOME/dbs/initdhee.ora’

 Take the database to mount stage.

 RMAN>restore controlfile from ‘$ORACLE_HOME/dbs/standbyctl.ctl’



STEP 19:

 Sql>alter database mount;



STEP 20:

 Create the Standby database

 RMAN>duplicate database ‘dhee’ for standby backup location ‘$ORACLE_HOME/dbs/’;

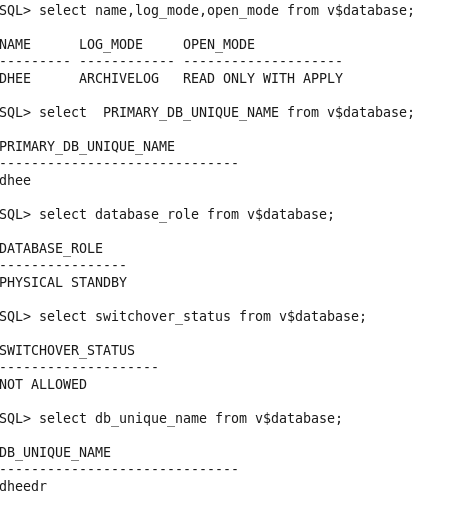

Apply the redo logs from the primary to standby database.



STEP 21:
